Enviroment Protecting and Water Well Drilling Machine QY - 100L
Application:
1.Coring original soil by strait push style
2. Set the groundwater monitoring well
3. Getting underwater saple by strait push style
4. Repairing by original medicament injection
Parameter:
| Power head performance |
| Rotation power head: | |
| High torque | 5600Nm |
| Low torque | 1800Nm |
| High speed | 80rpm |
| Low speed | 20rpm |
| Output mode,inner hexagon | ∅69x65 |
| Impact power head: | |
| Impact frequency | 1900bpm |
| Impact power | 12kW |
| Power head lifting force | 260kN |
| Power head propelling force | 185kN |
| Power head stroke | 2000mm |
| Carring capacity of rear hanging | 1200kg |
| Front and back slipping of machine frame | 450mm |
| Tower election angle | 25°-100° |
| Derrick inclination angle | -15°-15° |
| Weight | 6000kg |
| Height of work | 4800mm |
| Transport dimension(l,w,h) | 3378x1920x2300mm |
| Ground specific pressure | 0.36kg/cm² |
| Walking speed | 2.8-4.2km/h |
| Rated power | 93Kw@ 1800rpm |
| Hydraulic hoist lifting force | 1.2T |
| Hydraulic hoist speed | 0-30m/min |
Features:
1. Integrated power head with impact and rotation
2. Power head carriage can be moved horizontally
3. Self reset crown block structure
4. Opening and closing control cabinet
5. Wireless remote control and hydraulic control operation
6. Double oil cylinder rear hanger
7. Load sensitive electro-hydraulic proportional hydraulic system, energy saving and high efficiency
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
|
|

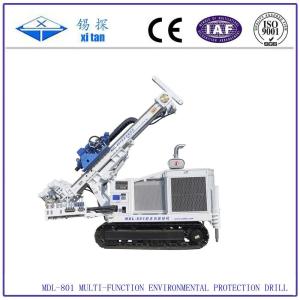

Enviroment Protecting And Water Well Drilling Machine QY - 100L Long Life Images
|
