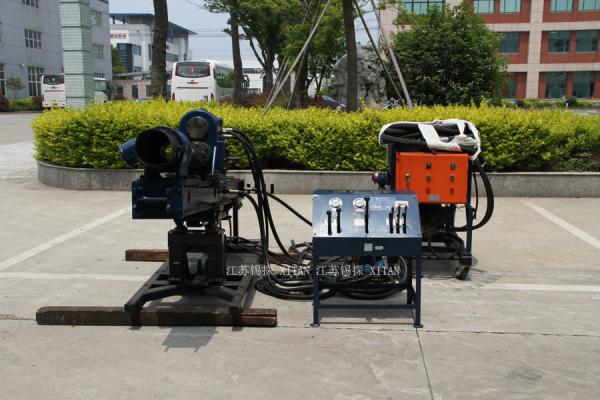

MD-50 Hydraulic Power Head Anchor Drilling Rig High Torque 2500 N.m
Quick Detail:
1. MD-50 drilling rig is a kind of full hydraulic power head drilling rig and high torque.It is applied to drill heavy duty anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill high-pressure jet grouting holes.
2. It has great drilling capability, wide range of application, rapid drilling speed and high drilling efficiency, as well as powerful ability of eliminating accident.
3. Rig structure is separate group design, it assures good disassembling, rapid and convenient mount and transport, best working environment and lower labor strength.
Description:
1. MD-50 drilling rig is a kind of full hydraulic power head drilling rig.
2. It is applied to drill heavy duty anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill high-pressure jet grouting holes.
3. The rig is suitable for various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, follow-up casing drilling, etc.
Specifications:
| Hole depth | 50-60m |
| Hole dia | 110-180mm |
| Hole angle(°) | -10-90° |
| Output rotary speed of power head | Forward: 20/40/56/111/167r/min |
| Reverse: 20/40/56/111/167r/min |
| Stroke of power head | 1700mm |
| Output torque of power head | 2000N.m |
| Lifting force of power head | 25KN |
| Feeding force of power head | 17kN |
| Power | Electric motor: | 18.5KW |
| Weight | 1200KG |
| Dimensions (L×W×H) | 2978×700×1205mm |
Applications:
1. Anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc.
2. It is also used to drill high-pressure jet grouting holes.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
