GXY-1 Geological Exploration Drilling Equipment For Engineering Prospecting
Quick Detail:
1.GXY-1 drilling has large input power and output torque. Its drilling capacity is strong. Its capacity of dealing with accidents is good. It has an oil pressure feeding structure and its labour intensity is low.
2.The drill is suitable in the mountain area because it can be carried easily for light weight.
3.The drill and the pump are transmitted separately, improving the output torque and avoiding the accidents in the hole.
4.Opening the clinostat, it is easy to lift and loose the drill.
Description:
1.GXY-1 is a spindle type drill. It can be used in engineering geological exploration, survey and exploration of solid mineral deposit, blasting engineering hole, inspecting hole of various concrete stucture, etc.
2.According to various layer, it can be drilling with diamond bit, hard alloy bit, auger bit, etc.
3.The drill is suitable in the mountain area because it can be carried easily for light weight
4.The drill is convenient for maintenance and repair for simple structure and reasonable layout.
5.Opening the clinostat, it is easy to lift and loose the drill.
Specifications:
| Type | GXY-1 |
| Hole depth | 50-150m |
| Hole diameter | 150-75mm |
| Diameter of drill rods | Φ43/42mm |
| Drilling angle | 360° |
| Dimension(L*W*H) | 1450*970*1280mm |
| Weight(without power unit) | 500KG |
| Power head output speed | Forward: 61/163/338/654 r/min Reverse: 45 r/min |
| Stroke | 500mm |
| Spindle feed force | 20kN |
| Spindle lifting capacity | 25kN |
| Drilling rod clamping type | Ball card |
| Making-way type for hole collar | Power head open box |
| Hoist lifting capacity | 15kN |
| Hoist lifting speed | 0.2/0.52/1.05/2.06m/s |
| Diesel engine | 13kW,2200 r/min |
| Motor | 11kW,1500 r/min |
| Drilling rod clamping type | Ball chuck type |
| Making-way type for hole collar | Power head open box |
Applications:
1. Engineering geological exploration.
2. Survey and exploration of solid mineral deposit.
3. Blasting engineering hole.
4. Inspecting hole of various concrete stucture.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
Product Tags:
|
|

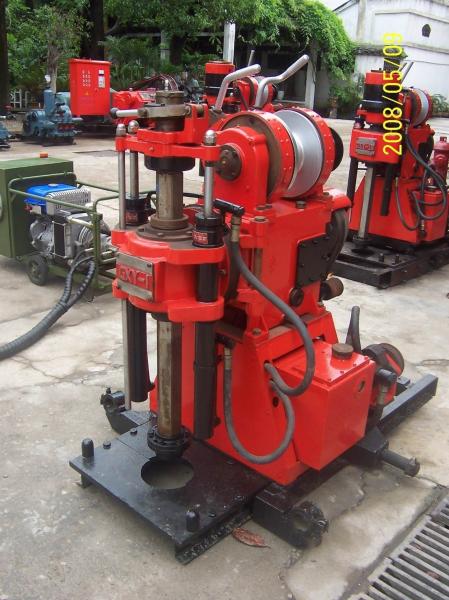

GXY-1 Geological Exploration Drilling Rig For Engineering Prospecting Images
|
