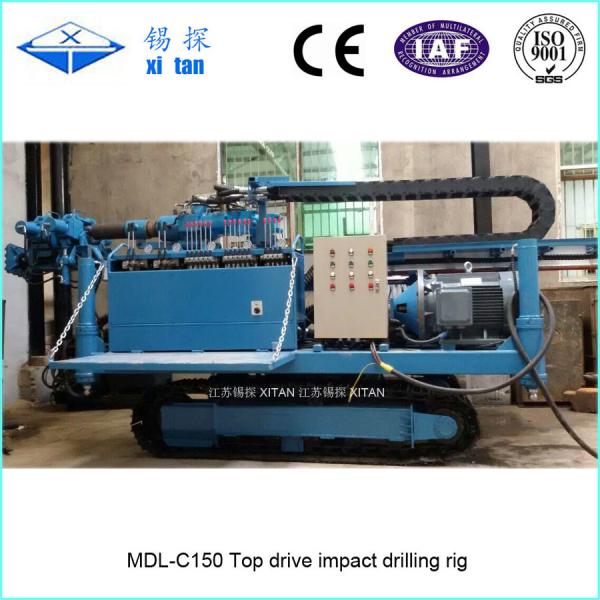

MDL-C150 Top Drive Impact Drilling Rig
| Type | MDL-C150 |
| Hole Diameter (mm) | Φ150～Φ250 |
| Hole depth (m) | 100-80 |
| Angle(°) | 0~110 |
| Rod diamter (mm) | Φ76,Φ89,Φ127,Φ146 |
| Rotary Torque(N.m) | 9500 |
| Rotary Speed(P/R,r/min) | 9～138 |
| Impact torque (N.m) | 450 |
| Impact frequncy(min-1) | 1300 |
| Pulling capacity(KN) | 70 |
| Feeding pacacity(KN) | 36 |
| Pulling speed(m/min) | 1.4,7,18,26 |
| Feeding speed(m/min) | 0~2.8,14,36,51 |
| Stroke(m/min) | 2600 |
| Sliding stroke (mm) | 900 |
| Max Mast level height to ground (m) | 3.5 |
| Power(KW) | 92kw (cummins) |
| Weight (kg) | 6800 |
| Climb angle | 25° |
| Woking overall (L×W×H,mm) | 4600×2500×5600 |
| Transportaion overall (L×W×Hmm) | 5400×2100×2000 |

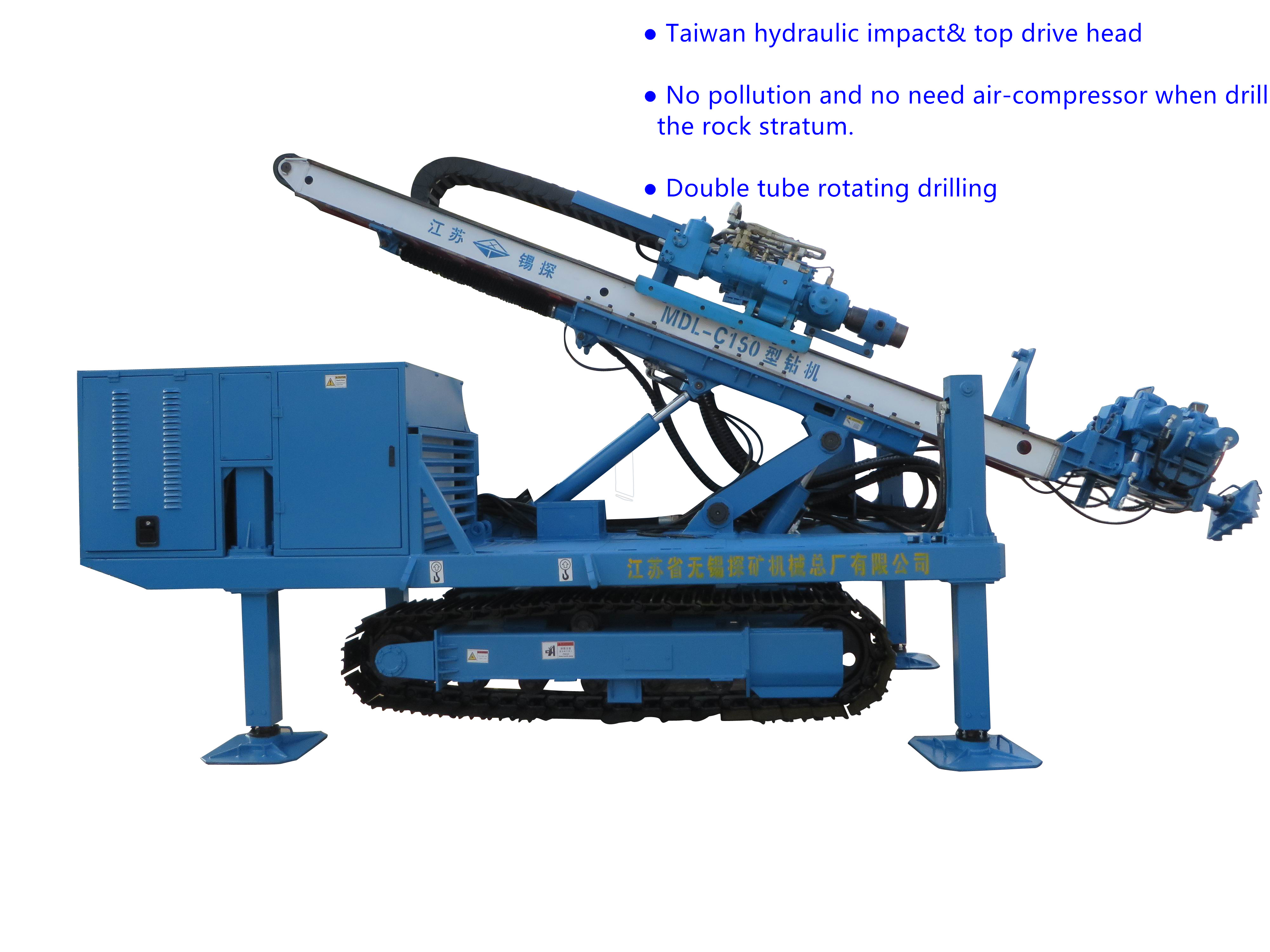

1.It has adopted top hydraulic rotary power head impact which is Taiwan imported, multi-angle drilling,and excellent performance.
2.The drilling rig can be applied for different technique methods and a variety of ground conditions,especially in the difficult work condition,such as the imcompact ground area,the gravel place,and the fragment rock stratum,this drilling can always provide the operator excellent solutions.
3.It has no dull pollution and no need air-compressor when drill the incompact ground area,the gravel place and fragment rock stratum.
4.When meeting those fragile holes such as sand gravel layer,gravel layer,sand stone soil,sand hole,the top drive drill equipment has a very high penetration rate and drilling efficiency.
5.In complex condition,it can use double tube rotating drilling,in order to make hole stable and easy to slip casting.
1.Urban subway, high-rise buildings,airport,geothermal hole,foundation anchoring.
2.Jet grouting and dewatering.
3.The blast hole,the anti-floating anchoring hole.
4.It can be also used for pipe shed engineering.
