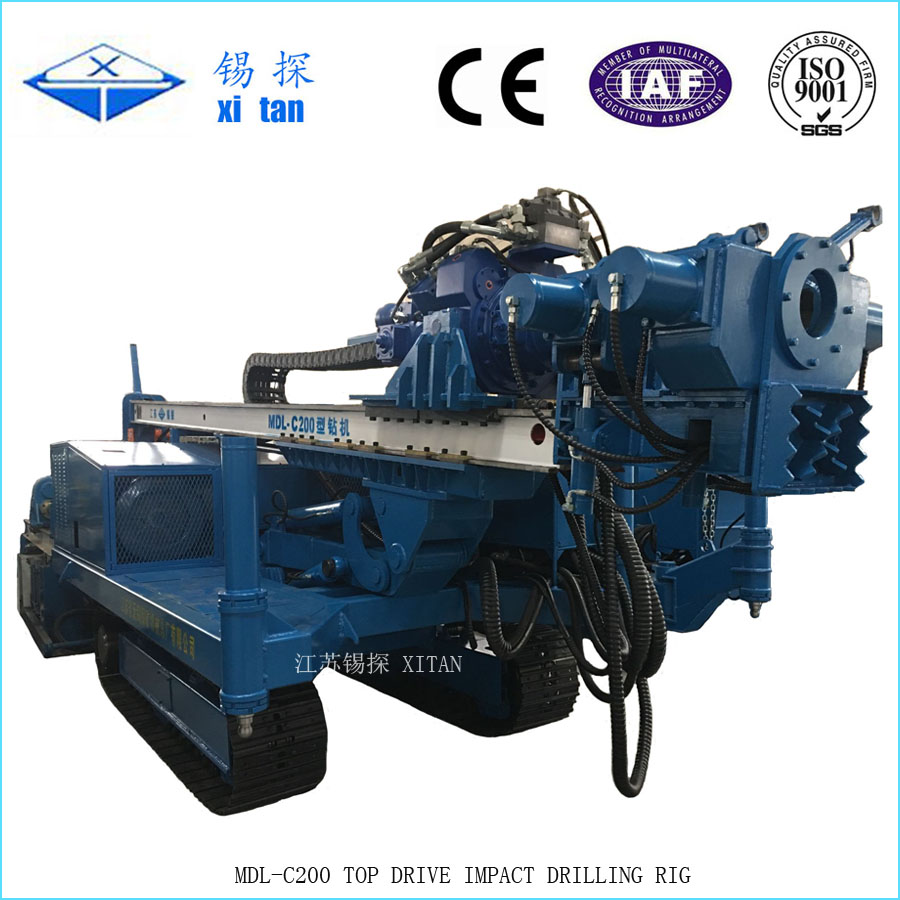

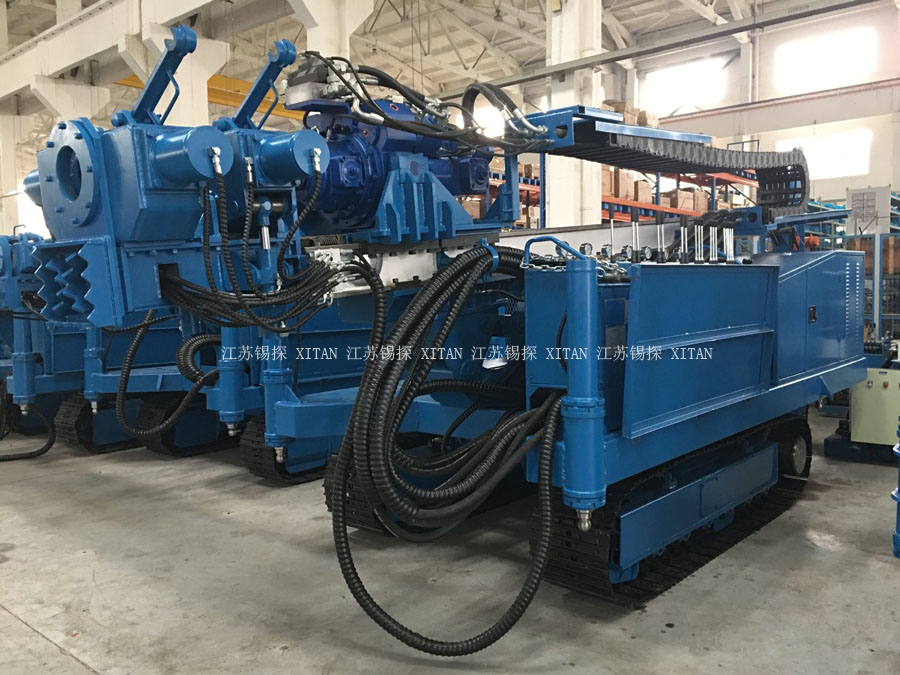

MDL-C200 High Power Vibration On Power Head Anchor Drilling Rig Without DTH Hammer Reduce Hole Accidents
Specifications:
| Hole dia.(mm) | ∅150-∅250 |
| Hole depth(m) | 220-180 |
| Hole angle(°) | 0-110 |
| Drill rod dia.(mm) | inner:∅89-∅114 outer:∅133-∅219 |
| Output torque(N·m) | 14000 |
| Rated speed(r/min,clockwise and reverse turning) | 12-140 |
| Impact power(N.M) | 900 |
| Impact frequency(min-1) | 1200-2100 |
| Lifting force(kN) | 78 |
| Feeding force(kN) | 40 |
| Lifting speed of power head(m/min) | 15 0-2.8 |
| Feeding speed of power head(m/min) | 30 0-5.5 |
| Feeding stroke(mm) | 3800 |
| Slide stroke(mm) | 1500 |
| Maximum lifting height level(m) | 3.6 |
| Imput power (electromotor)(kW) | 75+37+4 |
| (diesel engine)(kW) | 125(cummins) |
| Weight(kg) | 8800 |
| Climbing angle | 25° |
| Machine size in vertical work condition(L*W*H,mm) | 5000x2400x6900 |
| Transportation condition of main host(L*W*H,mm) | 6900x2180x2600 |
Quick Detail:
1. The top of the power head can vibrate with big power without DTH hammer or air compressor.
2. The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.
3. MDL-C200 is applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.
4. The machine can be used for foundation pit,protection of slope support,thnnel pipe shed.
Description:
1. MDL-C200 is a kind of full hydraulic power head anchor crawler drilling rig . Its drilling depth is 180-220m, and drilling diameter 150-250mm.
2. MDL-C200 is applicable to a wide-range of strata with big torque, high rotary speed, and big power.When meeting those fragile holes such as sand gravel layer, gravel layer, sand stone soil, sand hole, the top drive drill equipment has a very high penetration rate and drilling efficiency. Especially when the moisture content of local layer is too high to use DTH hammer when work, this top head drive drill rig is the only choice.
3. This top head drive drill rig adopts variable hydraulic system and can vibrate with big power without DTH hammer or air compressor.The drilling tools from the outer to the inner and all involved in the transmission of the impact power, it is not easy to happen the hole accidents such as drill sticking.
4. This top drive drill equipment is applicable to anchor hole, such as urban foundation pit supporting . And is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.
Applications:
1. Anchor hole, such as urban foundation pit supporting .
2. It is mainly applied to construction engineering supporting, slope supporting,all kinds of guide hole, tunnel and pipe shed engineering, etc.
