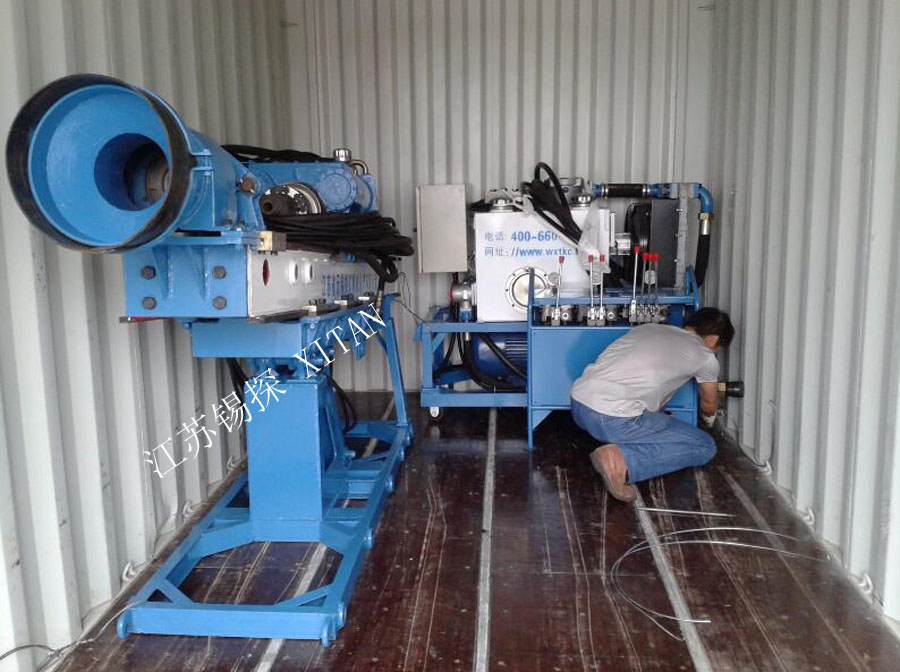

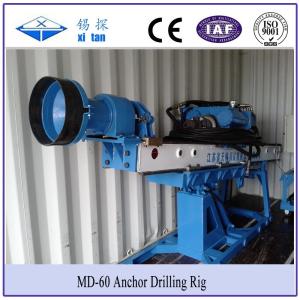

MD-60A Split Anchor Rig for Slope
Specifications:
| Hole depth | 50-80m |
| Rod dia | 90-185mm |
| Hole angle(°) | -15-90° |
| Output rotary speed of power head | 12,25,45,60,100,125r/min |
| Stroke of power head | 1800mm |
| Output torque of power head | 3000N.m |
| Lifting force of power head | 42.5KN |
| Feeding force of power head | 25kN |
| Power | Electric motor: | 22+1.5KW |
| Weight | 2300KG |
| Dimensions (L×W×H) | 3400×650×1400mm |
Quick Detail:
1.MD-60A drilling rig is a full hydraulic drive power head drill. It is used to drill anchor hole at side slope of water power station, railway or highway projects. It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill small sized water well.
2.The drill power head has a long stroke, the big torque and works efficiency.
3.Rig structure is separate group design, it assures good disassembling, rapid and convenient mount and transport, best working environment and lower labor strength.
Description:
1.MD-60A drilling rig is a full hydraulic drive power head drill. It is used to drill anchor hole at side slope of water power station, railway or highway projects. It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc. In addition, it is also used to drill small sized water well.
2.The drill power head has a long stroke, the big torque and works efficiency.
3.Rig structure is separate group design, it assures good disassembling, rapid and convenient mount and transport, best working environment and lower labor strength.
4.Full hydraulic drive and ensures, stepless shift, simple operate, convenient maintain and few wearing parts.
5.The rig is suitable for various drilling methods such as carbide bit drilling, auger drilling, DTH hammer drilling, follow-up casing drilling, etc.
Applications:
1.Anchor holes at side slope of water power station, railway or highway projects, to drill drainage holes and It also used to prevent or solve geologic calamity, such as landslide and rock collapse etc.
2.It is also used to drill high-pressure jet grouting holes and small sized water well.
Competitive Advantage:
Jiangsu Wuxi Mineral Exploration Machinery Factor which was founded in 1956.it has developed core-drill machine, geologic exploration drilling rig, anchoring drill rig,jet-grouting drill rig and so on. At present, the products has been exported to Southeast Africa, Asia and other global markets.
